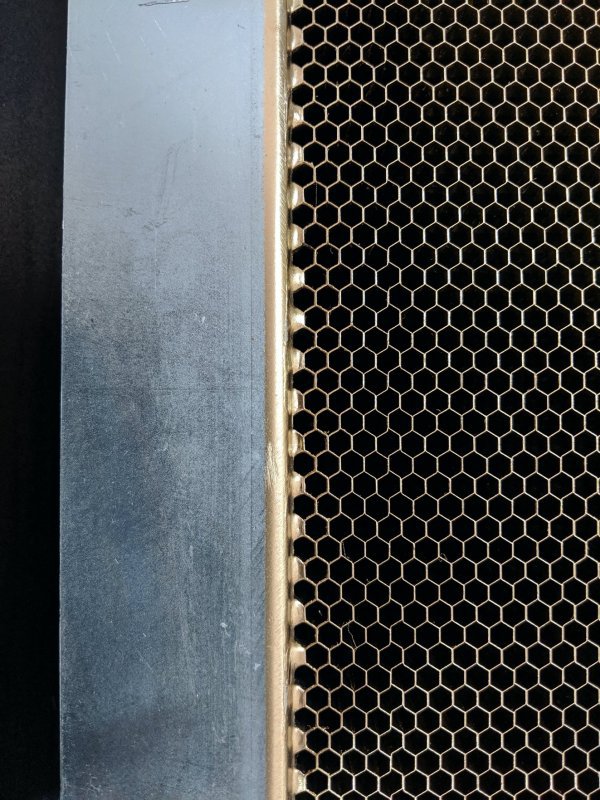

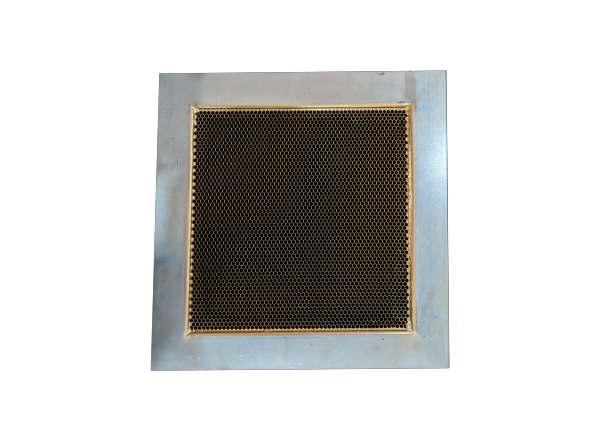

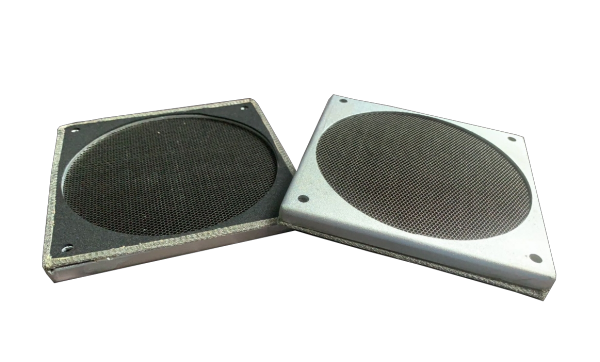

EMC Honeycomb Vent

EMC offers High Quality Honeycomb vents made of Aluminum, Steel, Brass core material in various size and mounting configuration based on requirement for PAN-type and Sandwich type shielding system

EMC premium quality high performance Honeycomb vents are used in RF and EMI/EMC shielded rooms for ventilation and antenna application. It comes in various thickness and cell diameters

Features:

• Connect HVAC system through dielectric collar to maintain required temperature inside the chamber. It ensures longevity of RF absorber and pleasant working environment inside the room
• Compliant per MIL-STD 285
• Core material made of Stainless Steel, Brass, Copper or Aluminum
• We can also provide vents with steel frames or chrome plated frames with Brass plated core or Tin plated core
• Core thickness available from 5 mm to 120 mm
• Cell diameter available from 2.5mm/ 3.2mm/ 4.0mm/ 5.0mm/8.0mm
• For high level shielding, we can provide cross cell vents
• Customized frame size available based on requirement for PAN-type and Sandwich type shielding system
• We can provide frames with per-drilled holes with fasteners or threaded holes or without holes
• Standard foil material type Tin plated steel roll
• Cell foil thickness 0.15 mm
• ROHS Compliant
